Quality parts introduces multiple CNC machining centers
Publisher: Webmaster | release time:2014/8/28 |read:4317Times
Due to the need for business expansion, the company today introduced multiple cnc machining centers forPrecision parts processingUse. The model is cncCNC machining center of VA3 type in Tsushang, Japan. It belongs to one of the most advanced machining centers nowadays. The following are the parameters of the model:

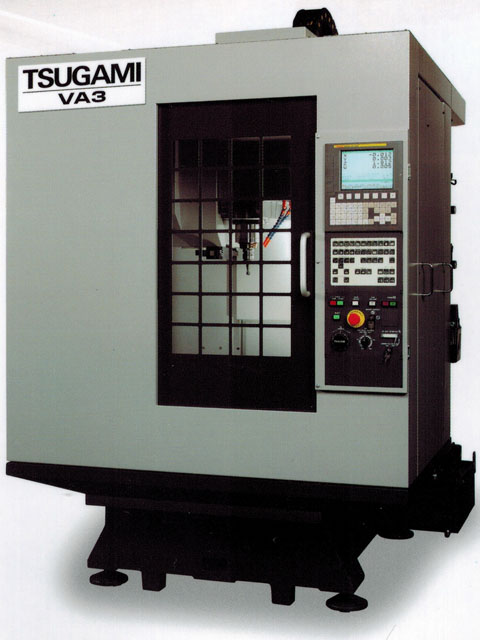

Japan Tsushang Precision Machining Center VA3 type
The
Main description: spindle taper: 7/24 taper Spindle speed: 200-20000min 1
Output power of main shaft electric motor: 9.0/3.7KW< FONT face=Verdana>Workbench size: 650*400mm
< /FONT>The height above the workbench: 830mmTable T-slot size: 14H8*3P=125mm
Spindle end~table surface: 150~500mmMaximum load size of the table: 250kg
Motion X axis: 500mmQuick Moving speed: 48m/min
Movement amount Y axis: 400mmCutting feed rate: 1~30000mm/min
amount of movement Z axis: 350mm FONT>Maximum number of tools: 21
Maximum tool size: 60*250mmMaximum tool weight: 3.0kg
>Automatic tool changer: double arm type Selection method: Choose the nearest one
Motor: 0.18KW Oil pump output: 60L/min
Fuel tank capacity: 130L face=Verdana> machine weight: 2600kg
NC device: NC device name: FANUC Oi-MDMinimum setting unit: 0.001mm
Position detector: absolute pulse encoder Odds for fast forward feed: FO, 25, 50, 100%
Select block to skip: 1 odds of fast feed: 0~200%
Working coordinate system: G54~G59 Auxiliary function: M3 bit
< FONT face=Verdana>Spindle function: S5 bit Tool function: T2 position< BR>Number of tool corrections: 400 program storage Capacity: 512kbyte
Program storage quantity: 400
Standard configuration: oil proof HoodFO cutting fluid device (cutting box and cutting Liquid tank)
Automatic lubricating oil deviceAir jet device for tool cleaning (in spindle at ATC)
Air compressor device Verdana>In-machine lighting
3 section signal tower
Special configuration: AR-170 four-transport turntable and drive system
